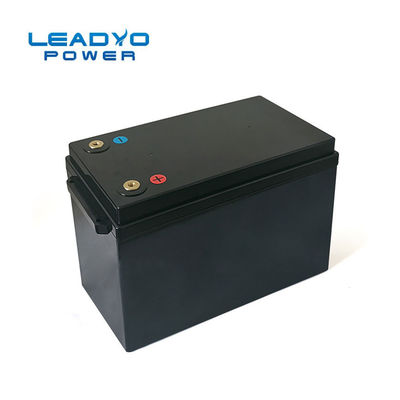

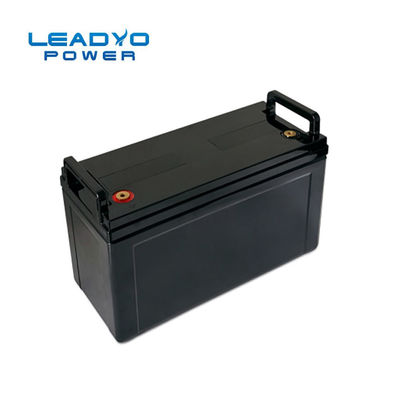

Name: 12V 200Ah Marine Deep Cycle Lithium Battery With High-Performance BMS
Brand: Shenzhen Leadyo Technology Co., Ltd.
SKU: LP12V200
Price: 900.00 USD
Availability: InStock

Markenbezeichnung:	LEADYO
Modellnummer:	LP12V200
Mindestbestellmenge:	1pcs
Preis:	Verhandlungsfähig
Verpackungsdetails:	Standardexport UN3480
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, online

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

UN38.3, CE,MSDS,UKCA

Spannung:

12V

Kapazität:

300Ah

G.W:

21kg

Maß:

345*190*245mm

Gegenwärtig:

100A

Pluse gegenwärtig:

300A

Zyklen:

in 5000mal

Versorgungsmaterial-Fähigkeit:

60Mwh

Hervorheben:

Marinebatterie des tiefen Zyklus des Lithiums der Lithium-Batterie 12v 100ah 200Ah

Produkt-Beschreibung

Lithium battery 12v 100ah 200Ah lithium deep cycle marine battery

Lithium Iron Phosphate Battery (12.8V / 200Ah)

Nominal Voltage 12.8 V

Nominal Capacity 200 Ah

Capacity @ 40A 300 min

Energy 2560 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	12.8V	Terminal Type	M8
Nominal Capacity	200Ah	Weight	21kg
Nominal Energy	2560Wh	Case Dimension(LWH)	345190245mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@40A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series and Parallel	4PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	150A	Max Charge Current	150A
Peak Current	500A	Recommended Charge Current	40A - 100A
Discharge pulse current	600±50A (31±10ms)	End of Charge voltage	28.8V±0.2V
BMS Low Voltge Cut-off	10V (2.0V±0.05v) pc)	Balancing current	Auto start
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

12V 200Ah Marine Deep Cycle Lithium Battery With High-Performance BMS 0

FAQ

1. Are you factory or trade company?

We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.Main use in Marine, RV,camping,Electric-fence, led light and other Solar/Wind Power system, Golf Cart, AGV, floor machines,Forklift, EV,E-bike, robot,power tooling, UPS, Medical and Military Equipment etc.

2.How to get a quote?
Please contact with us sales5@leadyo-battery.com or Phone/whatsapp:+ 8618825284421

3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

4.Do you accept OEM and ODM?

Yes sure, can customized your logo and design battery according to your requirements.

Schlagworte:

Einzelheiten Zu Den Produkten

Haus > Produits >

Batterien für Seeschiffe

12V 200Ah Marine Deep Cycle Lithium Battery With High-Performance BMS

Alle Kategorien

12V 200Ah Marine Deep Cycle Lithium Battery With High-Performance BMS

Markenbezeichnung:	LEADYO
Modellnummer:	LP12V200
Mindestbestellmenge:	1pcs
Preis:	Verhandlungsfähig
Verpackungsdetails:	Standardexport UN3480
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, online

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Markenname:

LEADYO

Zertifizierung:

UN38.3, CE,MSDS,UKCA

Modellnummer:

LP12V200

Spannung:

12V

Kapazität:

300Ah

G.W:

21kg

Maß:

345*190*245mm

Gegenwärtig:

100A

Pluse gegenwärtig:

300A

Zyklen:

in 5000mal

Min Bestellmenge:

1pcs

Preis:

Verhandlungsfähig

Verpackung Informationen:

Standardexport UN3480

Lieferzeit:

15-45 Tage

Zahlungsbedingungen:

L/C, D/A, D/P, T/T, Western Union, MoneyGram, online

Versorgungsmaterial-Fähigkeit:

60Mwh

Hervorheben:

Marinebatterie des tiefen Zyklus des Lithiums der Lithium-Batterie 12v 100ah 200Ah

Produkt-Beschreibung

Lithium battery 12v 100ah 200Ah lithium deep cycle marine battery

Lithium Iron Phosphate Battery (12.8V / 200Ah)

Nominal Voltage 12.8 V

Nominal Capacity 200 Ah

Capacity @ 40A 300 min

Energy 2560 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	12.8V	Terminal Type	M8
Nominal Capacity	200Ah	Weight	21kg
Nominal Energy	2560Wh	Case Dimension(LWH)	345190245mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@40A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series and Parallel	4PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	150A	Max Charge Current	150A
Peak Current	500A	Recommended Charge Current	40A - 100A
Discharge pulse current	600±50A (31±10ms)	End of Charge voltage	28.8V±0.2V
BMS Low Voltge Cut-off	10V (2.0V±0.05v) pc)	Balancing current	Auto start
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

12V 200Ah Marine Deep Cycle Lithium Battery With High-Performance BMS 0

FAQ

1. Are you factory or trade company?

Yes sure, can customized your logo and design battery according to your requirements.
